    Couplings and Fittings - OXY - ACETYLENE

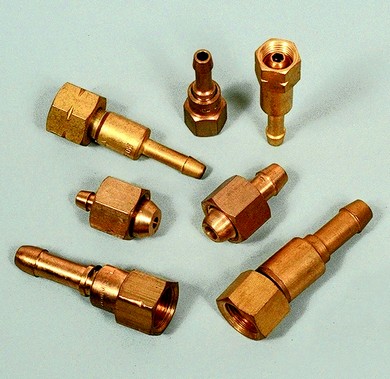

Hose fittings for oxygen and acetylene welding-cutting equipment. Made from machined brass bar and fitted using O clips or similar.

Click to enlarge - Hose fittings for oxygen and acetylene welding-cutting equipment. Made from machined brass bar and fitted using O clips or similar.


Click to enlarge - Hose fittings for oxygen and acetylene welding-cutting equipment. Made from machined brass bar and fitted using O clips or similar.
Notes OXYGEN – Right hand thread.
ACETYLENE – Left hand thread.
All hose tails are swivel female threads

OXYGEN<BR>UN-VALVEDACETYLENE<BR>UN-VALVEDOXYGEN<BR>+ BLOWBACKACETYLENE<BR>+ BLOWBACK
BSP x TAILBSP x TAILBSP x TAILBSP x TAIL
1/4" x 1/4"1/4" x 1/4"1/4" x 1/4"1/4" x 1/4"
3/8" x 1/4"3/8" x 1/4"3/8" x 1/4"3/8" x 1/4"
3/8" x 5/16"3/8" x 5/16"3/8" x 5/16"3/8" x 5/16"
3/8" x 3/8"3/8" x 3/8"3/8" x 3/8"3/8" x 3/8"
