Stortz couplings are designed to be easy to use, efficient and adaptable. They work on the principle of an hermaphrodite connection, that is, both parts are the same and lock together by a twist action. Stortz couplings are available in aluminium, brass, stainless steel and gunmetal. Seals are nitrile rubber as standard, Viton on request. Stortz couplings are designed for 16 bar working pressure. Stortz couplings are available with smooth tails for use with RS type clamps and all couplings can be supplied with safety latches.

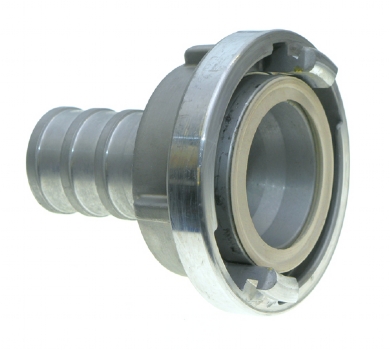

Click to enlarge - Stortz couplings are designed to be easy to use, efficient and adaptable. They work on the principle of an hermaphrodite connection, that is, both parts are the same and lock together by a twist action.

Stortz couplings are available in aluminium, brass, stainless steel and gunmetal. Seals are nitrile rubber as standard, Viton on request. Stortz couplings are designed for 16 bar working pressure.

Stortz couplings are available with smooth tails for use with RS type clamps and all couplings can be supplied with safety latches.

Notes

Stortz hose couplings are also available in many other step downs not listed in the table. If you have an unusual requirement, please call the sales office.

Stortz Hose Tails				$$	Stortz Adaptors
Stortz Size	Hose Diameter	KA Distance	Length	$$	KA Distance	Thread Size
	mm [D]	mm	mm [L]	$$		BSP Female	BSP Male
				$$
25	25	31	50	$$	31	1/2"
32	19	44	65	$$	31	3/4"
32	25	44	65	$$	31	1"	1"
32	32	44	75	$$	44	1"	1"
38	38	52	75	$$	44	1 1/4"	1 1/4"
52	25	66	90	$$	52	1 1/2"	1 1/2"
52	32	66	90	$$	52	2"
52	38	66	90	$$	66	1"
52	52	66	90	$$	66	1 1/4"	1 1/4"
65	65	81	90	$$	66	1 1/2"	1 1/2"
75	65	89	125	$$	66	2"	2"
75	70	89	90	$$	66	2 1/2"
75	75	89	125	$$	81	2"
75	80	89	135	$$	81	2 1/2"	2 1/2"
90	90	105	150	$$	89	2"
100	100	115	120	$$	89	2 1/2"	2 1/2"
110	100	133	170	$$	89	3"	3"
110	110	133	170	$$	105	3"
125	125	148	196	$$	115	4"
135	135	159	196	$$	133	4"	4"
150	150	160	180	$$	133	4 1/2"
165	150	188	275	$$	148	5"
205	205	220	375	$$	160	6"
				$$	188	6"
				$$	188	7"
				$$	220	8"
