    Clamps, Clips and Bands - 'BAND-IT' PRE-FORMED HOSE CLAMPS

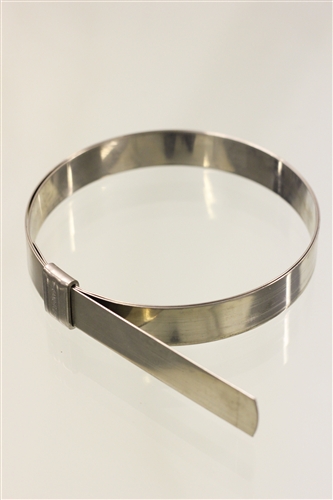

BAND-IT performed clamps are quickly and easily applied by means of the BAND-IT tool and adapter. Used for suction and delivery hose attachment. Most diameters come in a range of different widths.

Click to enlarge - BAND-IT performed clamps are quickly and easily applied by means of the BAND-IT tool and adapter. Used for suction and delivery hose attachment. Most diameters come in a range of different widths.


Click to enlarge - BAND-IT performed clamps are quickly and easily applied by means of the BAND-IT tool and adapter. Used for suction and delivery hose attachment. Most diameters come in a range of different widths.
Notes The V050 adapter allows clamping hose in the field without the use of a vice.
18 diameters in 5 widths, in CrNi, CrNiMo and galv. steel. Vibration-proof.
For high volume clamping, hydraulic or pneumatic tools may be used.
W001 BAND-IT tool 2.00 kg
V050 BAND-IT adapter 0.69 kg
V001 BAND-IT adapter 0.65 kg

CrNiCrNiMoCLAMP-IDCLAMP-IDWIDTHWIDTHTHICKNESSTHICKNESSKg
  mminchesmminchesmminches
V240-193/4"6.41/4"0.500.020"0.9
V201V4012113/16"9.53/8"0.640.025"1.6
V242-251"6.41/4"0.500.020"1.0
V243-251"9.53/8"0.640.025"1.8
V202V402351 3/8"9.53/8"0.640.025"2.1
V203V403251"12.71/2"0.750.030"3.0
V204V404321 1/4"12.71/2"0.750.030"3.3
V241-351 3/8"6.41/4"0.500.020"1.1
V252-381 1/2"6.41/4"0.500.020"1.2
V205V405381 1/2"16.05/8"0.750.030"4.7
V236-451 3/4"12.71/2"0.750.030"4.0
V206V406451 3/4"16.05/8"0.750.030"5.1
V245-481 7/8"9.53/8"0.640.025"2.5
V253-512 "6.41/4"0.500.020"1.5
V207V407512 "16.05/8"0.750.030"5.5
V227-512 "19.03/4"0.750.030"6.8
V208V408572 1/4"16.05/8"0.750.030"6.0
V209V409642 1/2"16.05/8"0.750.030"6.3
V256-702 3/4"6.41/4"0.500.020"1.7
V230-702 3/4"12.71/2"0.750.030"5.1
V210V410702 3/4"19.03/4"0.750.030"4.2
V244V444763 "6.41/4"0.50.020"1.9
V246V446763 "9.53/8"0.640.025"3.4
V211V411763 "19.03/4"0.750.030"4.4
V257-893 1/2"6.41/4"0.500.020"2.1
V212V412893 1/2"19.03/4"0.750.030"4.9
V248V4481024"9.53/8"0.640.025"4.1
V249-1024"12.71/2"0.750.030"6.8
V213V4131024"19.03/4"0.750.030"2.8
V214V4141144 1/2"19.03/4"0.750.030"3.0
V215V4151275"19.03/4"0.750.030"3.3
V216V4161526"19.03/4"0.750.030"3.7
