SAUDI-FLEX 0970
|
|
|
|
|
|

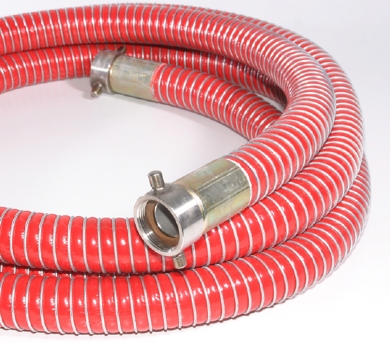

Composite hose built by using thermoplastic layers supported internally and externally by a galvanized and aluminium wire helix. Tough, yet lightweight hose for transport of hydrocarbons etc. Ends are swaged for maximum integrity.
|
|
|
Colour
|
Orange cover
|
|
Cover
|
Thermoplastic polypropylene fabric and film
|
|
Lining
|
Thermoplastic polypropylene fabric and film
|
|
Reinforcement
|
Internal wire: Aluminium
External wire: Galvanised steel
|
|
Specification
|
Fully complies to BS 3492/1A. Type BX
Electrically bonded
|
|
Remarks
|
This is a special lightweight version specially designed for aviation fuels and therefore conforms to BS3492 Type BX
|
|
Application
|
For the safe transport of leaded and unleaded petrol, diesel and lubricating oils. Aviation spirits.
|
|
Special Features
|
All hose assemblies are tested at 150% of design working pressure.
|
|
Temperature
|
-30°C to +80°C.
Available in up to 12" bore.
|
| ID | ID | OD | WP | WP | Bend Radius | Weight/metre | Availability |
| Inch | mm | mm | psi | bar | mm | Kgs | See under |
| 1" | 25 | 37 | 150 | 10 | 100 | 1.1 | |
| 1 1/4" | 32 | 44 | 150 | 10 | 140 | 1.3 | |
| 1 1/2" | 38 | 52 | 150 | 10 | 150 | 1.3 | |
| 2" | 51 | 62 | 150 | 10 | 150 | 1.4 | |
| 2 1/2" | 63 | 77 | 150 | 10 | 175 | 1.6 | |
| 3" | 76 | 90 | 150 | 10 | 225 | 1.7 | |
| 3 1/2" | 89 | 95 | 150 | 10 | 260 | 2.1 | |
| 4" | 102 | 122 | 150 | 10 | 350 | 2.4 | |
| Built to order | | | | | | | |
|
|
|
