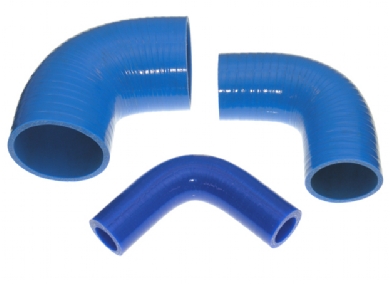

SILICONE HOSE Elbows
|
|
|
|
|
|
Standard 90 degree elbows are stocked with 6" leg lengths. Longer lengths are available to order. Being the versatile material it is, silicone elbows are used in many industries where high temperature and a hostile environment may be encountered.
|
|
|
Colour
|
Blue.
|
|
Cover
|
Silicone compound with a 65 shore hardness.
|
|
Lining
|
Silicone.
|
|
Reinforcement
|
Fine mesh polyester braid.
|
|
Specification
|
Exceeds SAE J20R1 Class A.
|
|
Remarks
|
Standard leg lengths are 6" from centre line x end of hose.
|
|
Application
|
Truck, bus, test beds and high temperature water applications.
|
|
Temperature
|
-50°C to +180°C.
|
| Bore Size | | Wall | Burst Pressure |
| mm | Inch | mm | bar |
| | | | |
| 6.3 | 1/4" | 4.5 | 36 |
| 9.5 | 3/8" | 4.5 | 36 |
| 12.7 | 1/2" | 4.5 | 34 |
| 15.8 | 5/8" | 4.5 | 33 |
| 19 | 3/4" | 4.5 | 32 |
| 22 | 7/8" | 4.5 | 32 |
| 25 | 1" | 4.5 | 30 |
| 28 | 1 1/8" | 4.5 | 30 |
| 32 | 1 1/4" | 4.5 | 29 |
| 35 | 1 3/8" | 4.5 | 28 |
| 38 | 1 1/2" | 4.5 | 25 |
| 41 | 1 5/8" | 4.5 | 24 |
| 45 | 1 3/4" | 4.5 | 20 |
| 48 | 1 7/8" | 4.5 | 19 |
| 51 | 2" | 4.7 | 15 |
| 57 | 2 1/4" | 4.7 | 15 |
| 63 | 2 1/2" | 4.7 | 14 |
| 70 | 2 3/4" | 5.1 | 12 |
| 76 | 3" | 5.1 | 12 |
| 89 | 3 1/2" | 5.1 | 10 |
|
|
|
