Stainless PTFE Hose
-

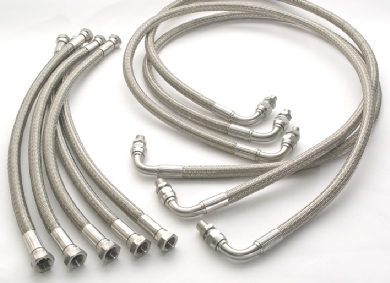

VENUS 4200
|
|
|
|
|
|
Same as Venus 4100 but double wire braided and with a heavier wall. This hose is also recommended for flexing applications.
|
|
|
Colour
|
Natural stainless finish.
|
|
Cover
|
Stainless Type 304 braid.
|
|
Lining
|
PTFE.
|
|
Reinforcement
|
Double stainless Type 304 braid.
|
|
Specification
|
Fully complies to SAE 100R14.
|
|
Remarks
|
Normally used with swaged fittings.
Available in heavy wall.
Can be carbon impregnated.
|
|
Temperature
|
-70°C to +260°C.
|
| ID | ID | OD | WP | WP | Bend Radius |
| Inch | mm | mm | psi | bar | mm |
| 1/8" | 3 | 7.1 | 5250 | 350 | 19 |
| 3/16" | 5 | 9.1 | 4800 | 320 | 25 |
| 1/4" | 6 | 10.9 | 4650 | 310 | 26 |
| 3/8" | 10 | 14.3 | 3600 | 240 | 50 |
| 1/2" | 13 | 17.3 | 3000 | 200 | 75 |
| 5/8" | 16 | 21 | 2325 | 155 | 100 |
| 3/4" | 19 | 24.3 | 1650 | 110 | 135 |
| 1" | 25 | 30 | 1260 | 84 | 250 |
| 1 1/4" | 32 | 37 | 1125 | 75 | 400 |
| 1 1/2" | 38 | 43 | 975 | 65 | 800 |
| 2" | 51 | 56 | 600 | 40 | 1200 |
|
|
|
