Stainless Metallic Hose
-
JUPITER 4700
|
|
|
|
|
|

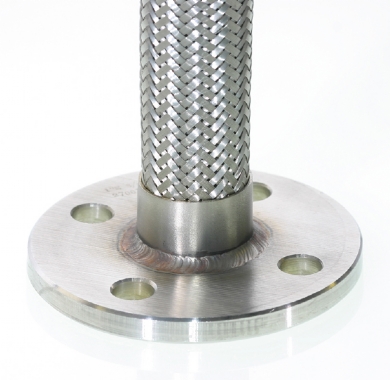

Convoluted metallic hose offering very good flexibility and resistant to many chemicals, fluids and gases. Overbraided with a single stainless braid. Liner is convoluted stainless 304. Usually, made into assemblies with threaded ends, flanges etc.
|
|
|
Colour
|
Natural stainless finish.
|
|
Cover
|
Stainless steel braid T304.
|
|
Lining
|
Convoluted stainless T304.
|
|
Reinforcement
|
Stainless steel braid T304.
|
|
Specification
|
Fully complies to SAE 100R14.
|
|
Remarks
|
Can be supplied in close pitch, with or without outer braiding.
Note pressure data does not apply for unbraided hoses.
|
|
Special Features
|
All pressure ratings based on ambient temperature
|
|
Temperature
|
-150°C to +700°C.
|
| ID | ID | WP | WP | Bend Radius | Weight/M |
| Inch | mm | psi | bar | mm | Kgs |
| 1/4" | 6 | 2030 | 140 | 100 | 0.28 |
| 3/8" | 10 | 1450 | 100 | 125 | 0.30 |
| 1/2" | 13 | 1305 | 80 | 125 | 0.50 |
| 5/8" | 16 | 950 | 63 | 140 | 0.58 |
| 3/4" | 19 | 800 | 55 | 150 | 0.62 |
| 1" | 25 | 700 | 48 | 180 | 0.80 |
| 1 1/4" | 32 | 550 | 38 | 200 | 1.15 |
| 1 1/2" | 38 | 490 | 34 | 250 | 1.50 |
| 2" | 51 | 450 | 31 | 350 | 2.10 |
| 2 1/2" | 63 | 390 | 27 | 500 | 2.65 |
| 3" | 76 | 360 | 24 | 525 | 3.13 |
| 4" | 102 | 215 | 15 | 625 | 4.15 |
| 5" | 127 | 200 | 14 | 750 | 8.40 |
| 6" | 152 | 130 | 9 | 900 | 7.85 |
| 8" | 203 | 120 | 8 | 1020 | 9.50 |
| 10" | 254 | 135 | 9 | 1220 | 12.50 |
|
|
|
JUPITER JUPITER 4700
Convoluted metallic hose offering very good flexibility and resistant to many chemicals, fluids and gases. Overbraided with a single stainless braid. Liner is convoluted stainless 304. Usually, made into assemblies with threaded ends, flanges etc.
|
|
|
JUPITER JUPITER 4800
Double wire overbraided metallic hose with stainless core and braid. Used where higher pressures are required. This hose gives long life performance and is used in arduous conditions.
|
|
|
|
|
|
