Products
|
|
|
|
|
|
|
|
Fuel Hose
-

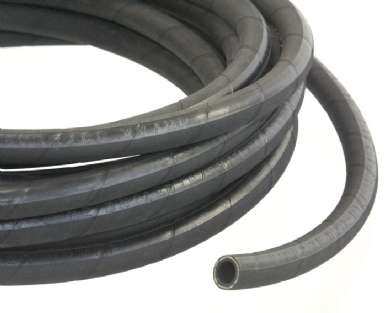

BRENT OIL/FUEL HOSE 3121
|
|
|
|
|
|
This fuel injection hose is made to SAE and BS standards. It has a smooth nitrile rubber liner and a NBR/PVC cover and is designed with a working pressure of 225 psi. Designed for use with diesel and unleaded petrol. very flexible.
|
|
|
Colour
|
Black
|
|
Cover
|
Black NBR/PVC
|
|
Lining
|
Nitrile rubber
|
|
Reinforcement
|
Synthetic polyester textile yarns.
|
|
Specification
|
SAE30 R7 and BSAU 108 C4 L4/R
|
|
Remarks
|
4:1 safety factor
|
|
Application
|
Fuel injection and general fuel lines
|
|
Temperature
|
-30ºC + 125ºC
|
| ID | ID | OD | WP | WP | Weight | Bend Radius |
| Inch | mm | mm | psi | bar | gms/metre | mm |
| 3/16" | 4.8 | 11.6 | 225 | 15 | 0.15 | 48 |
| 1/4" | 6.0 | 13.0 | 225 | 15 | 0.16 | 60 |
| 5/16" | 7.6 | 14.6 | 225 | 15 | 0.20 | 76 |
| 3/8" | 9.5 | 16.5 | 225 | 15 | 0.28 | 95 |
| 1/2" | 13.0 | 20.0 | 225 | 15 | 0.36 | 125 |
| | | | | | | |
|
|
|
|
|
BRENT OIL/FUEL HOSE BRENT OIL/FUEL HOSE 3121
This fuel injection hose is made to SAE and BS standards. It has a smooth nitrile rubber liner and a NBR/PVC cover and is designed with a working pressure of 225 psi. Designed for use with diesel and unleaded petrol. very flexible.
|
|
|
FORTIES FORTIES 3006
Premium quality, long length moulded oil/petrol hose for industrial and automotive use.
|
|
|
PIPER OIL HOSE PIPER OIL HOSE 7840
Hose for marine fuel lines. Approved to DNV and Lloyds. This hose has an improved fire resistance rating and is used on all craft of 22 metres or less.
|
|
|
PIPER OIL HOSE PIPER OIL HOSE 7840E
Large bore marine diesel exhaust hose. Fuel, oil and hydraulic fluids with up to 50% aromatics. Suitable for exhaust gas from water cooled stationary or marine diesel engines.
|
|
|
|
