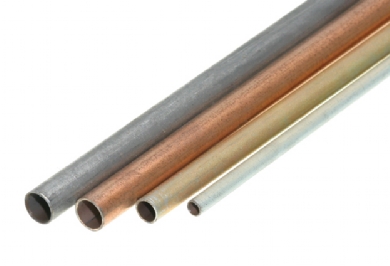

Copper & Bundy Tubing
|
|
|
|
|
|
Our 'Bundy' tubing comes in 3 metre straight lengths. Available in both imperial and metric sizes, the tubing is finished zinc plated and yellow passivated.
|
|
|
Colour
|
Natural
|
|
Cover
|
Tin alloy
|
|
Lining
|
Tin alloy
|
|
Remarks
|
3 metre standard straight lengths
|
|
Application
|
Automotive
|
|
Special Features
|
Working pressure should not exceed 1/4 of the design burst pressure and is based on oil media. Please contact us for advice on other media pressures
|
| Imperial | | | Availability | Metric | | | Availability |
| OD | Wall | Burst Pressure | | OD | Wall | Burst Pressure | |
| | [Inches] | [psi] | | | [mm] | [psi] | |
| 1/8" | 0.028 | 20000 | * | 4 | 0.71 | 20000 | * |
| 3/16" | 0.028 | 16500 | * | 6 | 0.71 | 13500 | * |
| 1/4" | 0.028 | 12000 | * | 8 | 0.71 | 10875 | * |
| 5/16" | 0.028 | 10875 | * | 10 | 0.71 | 7500 | * |
| 3/8" | 0.028 | 8200 | * | | | | |
| 1/2" | 0.028 | 5000 | * | | | | |
| * | Ex-stock | | | | | | |
|
|
|
|
