DIAMOND 2300
|
|
|
|
|
|
XLP [Cross linked polyethylene] chemical suction/discharge hose for a wide variety of chemicals and aggressive substances. This is a flexible hose reinforced with high tensile textile cords and embedded helical wires.
|

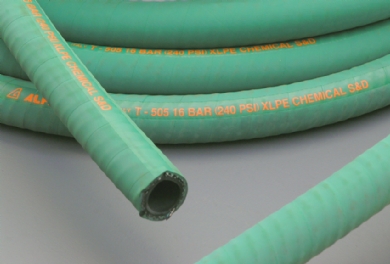

![Click to enlarge - XLP [Cross linked polyethylene] chemical suction/discharge hose for a wide variety of chemicals and aggressive substances. This is a flexible hose reinforced with high tensile textile cords and embedded helical wires.](images\products\large\321.JPG)
|
|
Colour
|
Green or black cover/Black or clear liner
|
|
Cover
|
EPDM rubber
|
|
Lining
|
Cross linked polyethylene
|
|
Reinforcement
|
Synthetic textile yarns. Double wire helix
|
|
Specification
|
Rated at up to 90% vacuum and with a 3:1 safety factor at pressure.
|
|
Remarks
|
Resistant to many chemicals.
|
|
Application
|
For use with many chemicals, used in treatment works on dosing pumps and for transfer of agricultural liquid fertilisers.
|
|
Temperature
|
-20ºC to +65ºC
|
| ID | ID | OD | WP | WP | Weight | Bend Radius | Availability |
| Inch | mm | mm | psi | bar | Kg/m | mm | |
| 3/4" | 19 | 31 | 240 | 16 | 0.67 | 188 | * |
| 1" | 25 | 37 | 240 | 16 | 0.82 | 225 | * |
| 1 1/4" | 32 | 44 | 240 | 16 | 0.98 | 263 | * |
| 1 1/2" | 38 | 50 | 240 | 16 | 1.13 | 338 | * |
| 2" | 51 | 63 | 240 | 16 | 1.48 | 413 | * |
| 2 1/2" | 63 | 77 | 240 | 16 | 2.27 | 450 | ** |
| 3" | 76 | 92 | 240 | 16 | 2.72 | 525 | * |
| 4" | 102 | 118 | 240 | 16 | 3.71 | 675 | ** |
| * | usually ex-stock | ** | 2 days | | | | |
|
|
|
