Designation Ltd - 46 years and still going strong! - Quick Release Couplings For Air - AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS - These mould couplings are specially designed for coolant lines to moulds or dies. Couplings are interchangeable with DME, Foster FJT and Parker Mouldmate.

These mould couplings are specially designed for coolant lines to moulds or dies. Couplings are interchangeable with DME, Foster FJT and Parker Mouldmate.

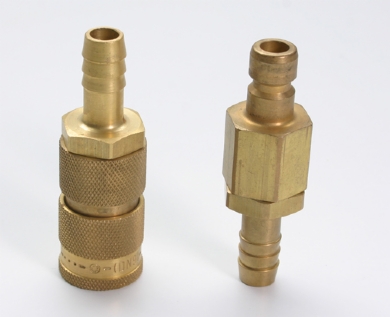

Click to enlarge - These mould couplings are specially designed for coolant lines to moulds or dies. Couplings are interchangeable with DME, Foster FJT and Parker Mouldmate.

Notes

Series 86:

Maximum working pressure: 230 psi
Temperature range: -20C +200C

Series 87 also available

Style	Connection	Connection	Connection	Connection

Coupler Unvalved	1/4" BSPP Male
Coupler Valved	1/4" BSPP Male
Coupler Unvalved	1/8" BSP Femal	1/4" BSP Female
Coupler Valved	1/8" BSP Female	1/4" BSP Female
Coupler Unvalved	1/4" Hose Tail	5/16" Hose Tail	3/8" Hose Tail
Coupler Valved	1/4" Hose Tail	5/16" Hose Tail	3/8" Hose Tail
Coupler 45 angled Unvalved	1/4" Hose Tail	5/16" Hose Tail	3/8" Hose Tail
Coupler 45 Angled Valved	1/4" Hose Tail	5/16" Hose Tail	3/8" Hose Tail
Coupler 90 Angled Unvalved	1/4" Hose Tail	5/16" Hose Tail	3/8" Hose Tail
Coupler 90 Angled Valved	1/4" Hose Tail	5/16" Hose Tail	3/8" Hose Tail

Probe Valved	1/4" BSPT Male
Probe Unvalved	1/8" BSPT Male	1/4" BSPT Male	3/8" BSPT Male
Probe Unvlaved	1/8" BSP Female	1/4" BSP Female
