    Quick Release Couplings For Air - AIR & WATER QUICK RELEASE COUPLINGS & ADAPTORS

These mould couplings are similar to Series 86 but are of a larger design.

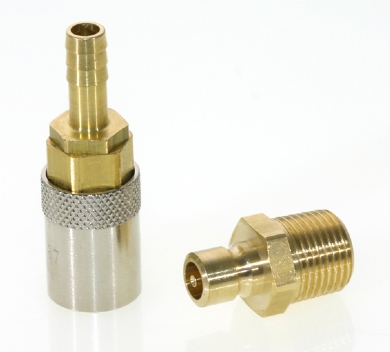

Click to enlarge - These mould couplings are similar to Series 86 but are of a larger design.


Click to enlarge - These mould couplings are similar to Series 86 but are of a larger design.
Notes Series 87:

Maximum working pressure: 230 psi
Temperature range: -20C + 200C

Interchangeable with DME, Jiffy-Tite/Matic, Foster FJT and Parker Mouldmate.

StyleConnectionConnectionConnectionConnection

Coupler Unvalved3/8" Hose Tail1/2" Hose Tail
Coupler Valved3/8" Hose Tail1/2" Hose Tail
Coupler 45 Angled Unvalved3/8" Hose Tail1/2" Hose Tail
Coupler 45 Angled Valved3/8" Hose Tail1/2" Hose Tail
Coupler 90 Angled Unvalved3/8" Hose Tail1/2" Hose Tail
Coupler 90 Angled Valved3/8" Hose Tail1/2" Hose Tail

Probe Valved3/8" BSPT Male1/2" BSPT Male
Probe Unvalved1/4" BSPT Male3/8" BSPT Male1/2" BSPT Male
Probe Unvalved1/4" BSP Female3/8" BSP Female1/2" BSP Female



Back to previous page Enquire about this product
